Fuses

Notes

Never attempt to repair a blown fuse and Replacing fuses
Never attempt to repair a blown fuse and do not replace a defective fuse with a substitute of another color or amperage rating; this could lead to a circuit overload, ultimately resulting in a fire in the vehicle.◀

Plastic tweezers and information on the fuse types and locations are stored in the fuse box in the cargo area.

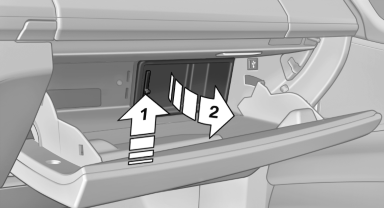

In the glove compartment

Push the handle up, arrow 1, and open the lid,

Push the handle up, arrow 1, and open the lid, arrow 2.

In the cargo area

Push the handle up, arrow 1, and open the lid,

Push the handle up, arrow 1, and open the lid, arrow 2.

In the cargo area

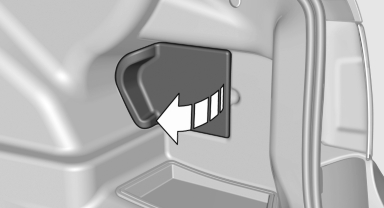

Open the cover on the right side trim.

Open the cover on the right side trim.

Information on the fuse types and locations is found on a separate sheet.
