Washer/wiper system
Do not switch on the wipers if frozen<>
Do not switch on the wipers if they are frozen
onto the windshield; otherwise, the wiper
blades and the windshield wiper motor may be
damaged.◀

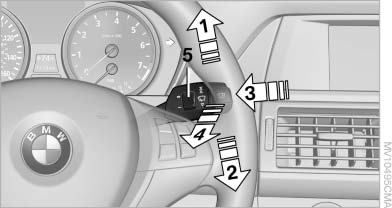

Washer/wiper system
1. Switching on wipers
2. Switching off wipers or brief wipe
3. Activating/deactivating the rain sensor
4. Cleaning the windshield and headlamps
5. Setting the sensitivity of the rain sensor
See also:
Important features in the engine compartment
Important features in the engine compartment
1 Jump-starting, negative terminal
2 Vehicle identification number
3 Washer fluid reservoir
4 Jump-starting, positive terminal
5 Engine compartment ...
Park Distance Control PDC
The conceptThe PDC assists you with maneuvering in tight parking spaces. Acoustic signals
and a visual indicator warn you of the presence of an object behind your vehicle.
Four ultrasonic sensors ...
Fuel cap
Opening
1. Briefly press the rear edge of the fuel filler
flap.
2. Turn the fuel cap counterclockwise.
3. Place the fuel cap in the bracket attached to
the fuel filler flap.
Closing
1. ...
