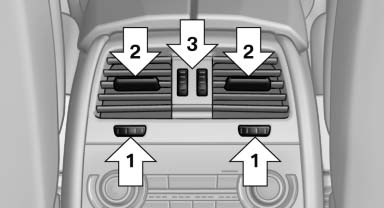

Ventilation in rear, center
- Thumbwheels* for adjusting the temperature,
arrows 1.
Toward blue: colder.
Toward red: warmer. - Lever for changing the air flow direction, arrow 2.
- Thumbwheels for opening and closing the vents continuously, arrow 3.<>
