Partition net

place Do not let the partition net snap back into place
Do not allow the partition net to snap back into place; otherwise, there is a danger of injury and the partition net could be damaged.◄

With a normal cargo area

1. Fold open the rear covers on the headliner.
2. Pull the partition net out of the case by the strap.
3. Insert the bars into the brackets on both sides in the headliner toward the front, arrow.

This is best performed from the rear seat.

If the partition net is no longer needed: proceed

If the partition net is no longer needed: proceed in reverse order.

With an enlarged cargo area

1. Fold down the entire rear seat backrest.

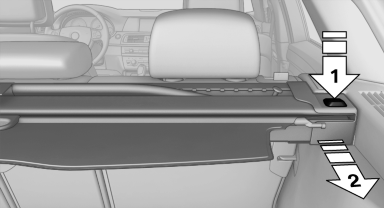

2. Press the button, arrow 1, to unlock the case on both sides.

3. Pull the case rearward out of the two side

3. Pull the case rearward out of the two side brackets, arrow 2. Make sure not to tilt it in the process.
4. Slide the case all the way into the guides, arrows 1, on the backs of the backrests.

5. Fold open the front covers on the headliner.

5. Fold open the front covers on the headliner.
6. Carefully pull out the partition net and insert it into the brackets as in the normal cargo area.

This is best performed from the front seat.

If the partition net is no longer needed: proceed in reverse order.

Finally, slide the case forward into the two brackets on the sides until it engages. The red warning fields disappear.

Tug on the case to check if it is properly locked in place.
