Automatic climate control with enhanced features

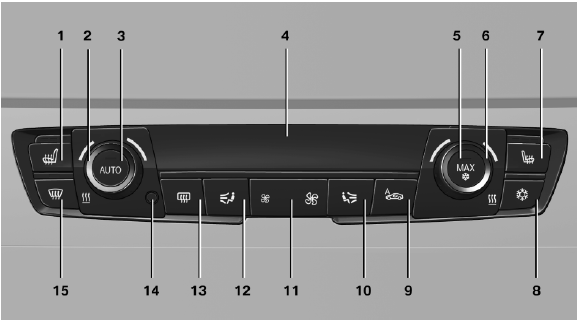

Automatic climate control with enhanced features
1 Seat heating, left
2 Temperature, left
3 AUTO program
4 Display
5 Maximum cooling
6 Temperature, right
7 Seat heating, right
8 Cooling function
9 Automatic recirculated-air control/recirculated- air mode
10 Air distribution, right
11 Air flow, AUTO intensity
12 Air distribution, left
13 Rear window defroster
14 Interior temperature sensor — always keep clear
15 Defrosting windows and removing condensation
