Floor panel flap
Floor panel flap

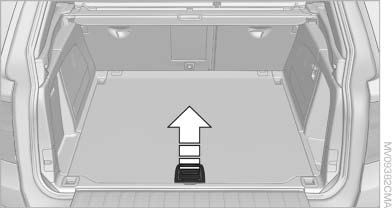

To access the onboard vehicle tool kit etc.
To open, swing up the flap by the handle, refer to arrow.
The cargo floor cover is lockable.
