BMW X5: luggage compartment roller cover

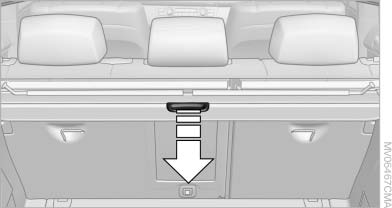

Pull out the luggage compartment roller cover and hook it into the brackets.

Do not deposit heavy objects
Do not deposit heavy or hard objects on the luggage compartment roller cover. Otherwise, they may present a danger to occupants, for instance during braking and evasive maneuvers.◀

  Do not let the luggage area retractable cover snap back
Do not let the luggage compartment retractable cover snap back as this could damage the cover.◀

Removing

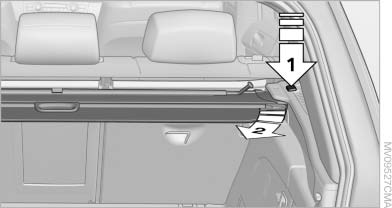

1. Unlock the case with the button, arrow 1

Unlock the case with the button

2. Swing the case somewhat to the left, arrow 2, and remove it.

Installing

When installing, proceed in the opposite order of removal.

When installing, proceed in the opposite order of removal

1. Lay the case on the left-hand side and push it forward, arrow 1.

2. Swing the case toward the inside, see arrow 2.

3. Push the case forward at the ends until it engages in the two side brackets.

4. Check whether the case is properly locked in place by pulling it with a sudden movement.
