Automatic climate control with 2-zone control

Automatic climate control with 2-zone control

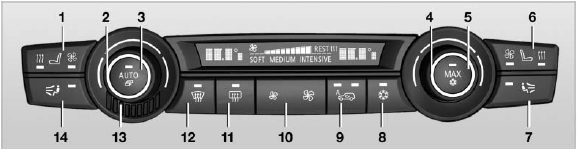

Automatic climate control with 2-zone control

1. Seat heating and ventilation, driver's side

2. Temperature, left side of passenger compartment

3. AUTO program

4. Temperature, right side of passenger compartment

5. Maximum cooling

6. Seat heating and ventilation, front passenger side

7. Passenger side

▷ Manual air distribution
▷ Accessing setting for ventilation temperature on the Control Display

8. Switching cooling function on/off manually

9. Automatic recirculated air control/recirculated air mode

10. Manual air volume, switching off automatic climate control, residual heat

11. Rear window defroster

12. Defrosting windows and removing condensation

13. Air grill for interior temperature sensor, please keep clear and unobstructed

14. Driver's side

▷ Manual air distribution
▷ Accessing setting for ventilation temperature on the Control Display
