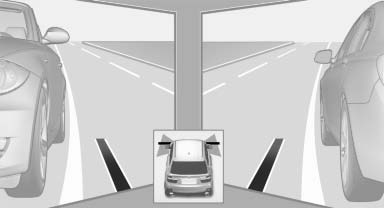

Image on the Control Display

The traffic area to the left and right is displayed on the Control Display.

Image on the Control Display
Image on the Control Display

Guidelines at the bottom of the image show the position of the front of the vehicle.

Brightness

With the Side View switched on:

1. 2. Turn the controller until the desired setting "Brightness"

2. Turn the controller until the desired setting is reached and press the controller.

Contrast

With the Side View switched on:

1. 2. Turn the controller until the desired setting "Contrast"

2. Turn the controller until the desired setting is reached and press the controller.
