Viewing stored Check Control messages
Viewing stored Check Control messages

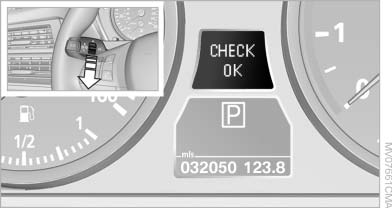

1. Press the button on the turn signal lever downward. "CHECK OK" or the stored Check Control messages appear on the display.
„CHECK OK“ is shown if no messages are present.
Check Control messages are accompanied by text messages on the Control Display.
2. Press the button to display additional messages, the time and external temperature, or the date.
Displaying stored Check Control messages
1. "Vehicle Info"
2. "Vehicle status"
3.
"Check Control"
4. Select the text message.
