Hiding Check Control messages
Hiding Check Control messages

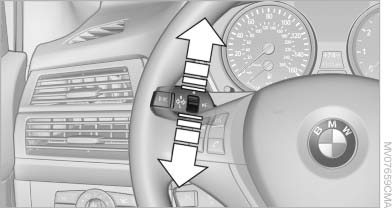

Press the button in the turn signal lever up or down.
▷ Some Check Control messages are displayed continuously and are not cleared until the malfunction is eliminated. If several malfunctions occur at once, the messages are displayed consecutively.
These messages can be hidden for approx.
8 seconds. After this time, they are displayed
again automatically.
▷ Other Check Control messages are hidden
automatically after approx. 20 seconds.
They are stored and can be displayed again later.
See also:
Turn signals, front
24-watt bulb, PY24W
1. Rotate bulb holder to the left and remove it
along with the bulb.
Turn signals, front
2. Rotate the bulb to the right along with the
socket and replace.
3. Install in ...
Displaying messages
1. "Office"
2. "Messages"
A symbol identifies the type of message.
...
Capturing the image
The image is captured by two cameras
integrated in the exterior mirrors and by the
backup camera.
The range equals:
▷ Approx. 7 ft/2 m to the side.
▷ approx. 7 ft/2 m to the rear.
...
