Signaling a turn

Press the lever beyond the resistance point.

To switch off manually, press the lever to the resistance point.

Unusually rapid flashing of the indicator lamp indicates that a turn signal bulb has failed.

Signaling a turn briefly

Press the lever to the resistance point and hold it there for as long as you want the turn signal to flash.

Triple turn signal activation

Triple turn signal activation Press the lever to the resistance point.

The turn signal flashes three times.

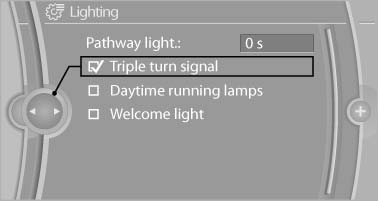

This function can be activated or deactivated:

1. "Settings" 2. "Lighting" 3. "Triple turn signal"

Triple turn signal
Triple turn signal

The setting is stored for the remote control currently in use.
