Adjusting electrically

Adjusting electrically
Adjusting electrically

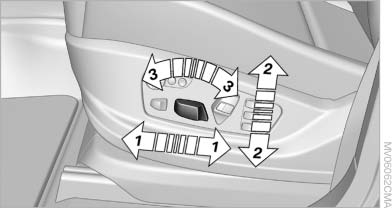

1. Forward/backward

2. Height

3. Seat tilt

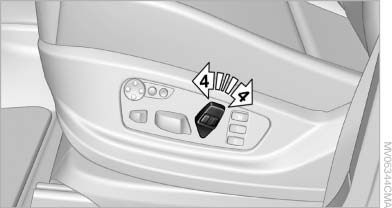

Backrest
Backrest

4. Backrest

Differs depending on seat:

Differs depending on seat
Differs depending on seat

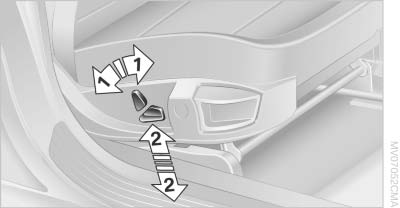

1. Backrest

2. Height

Additional depending on seat:

Additional depending on seat
Additional depending on seat

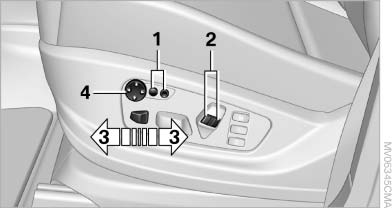

1. Backrest width

2. Shoulder support

3. Thigh support

4. Lumbar support

Backrest width

The width of the backrest can be changed with the side wings to adjust the side support to your own needs.

Shoulder support

This also supports the back in the shoulder area, This creates a relaxed sitting position and helps relieve stress on the shoulder muscles.

The shoulder support is also used to adjust the distance of the head restraint from the back of the seat occupant's head.

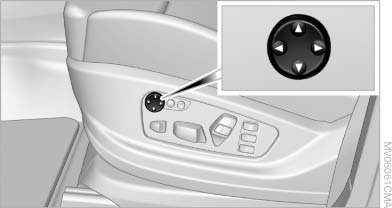

Lumbar support

Lumbar support
Lumbar support

You can also adjust the contour of the backrest to obtain additional support in the lumbar region.

The upper hips and spinal column receive supplementary support to help you maintain a relaxed, upright sitting position.

▷ Increase or decrease curvature:
Press front or rear section of switch.

▷ Shift curvature up or down:

Press upper or lower section of switch.
