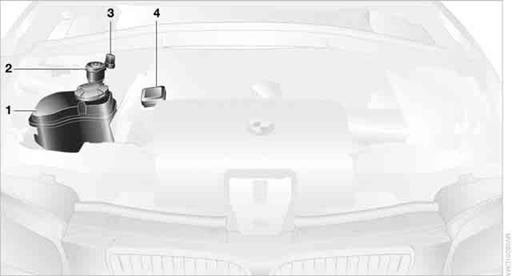

Important parts of the engine compartment
1. Expansion tank for coolant,
2. Washer fluid filler neck for headlamp cleaning system and window
washer system,
3. Jump-starting connection,
4. Fluid filler neck for engine oil, refer to Adding engine oil, page
219
