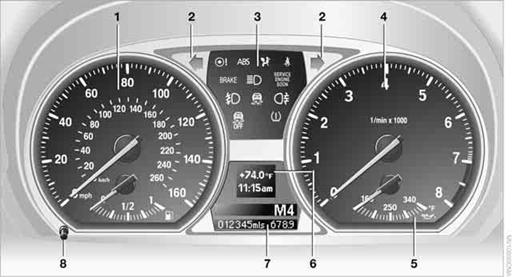

Instrument cluster
1.Speedometer 135i: with fuel gauge
2. Indicator lamps for turn signals
3. Indicator and warning lamps
4. Tachometer
5. Fuel gauge 135i: engine oil temperature
6. Display for
> Clock
> Outside temperature
> Indicator and warning lamps
7. Display for
> Position of automatic transmission
> Gear indicator in 7-gear Sport automatic transmission with double clutch
> Computer
> Date of next scheduled service, and remaining distance to be driven
> Odometer and trip odometer
> High-beam Assistant
> Checking the oil level
> Settings and information
8. Resetting the trip odometer
