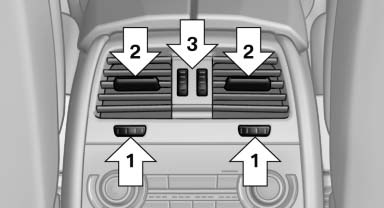

Ventilation in rear, center

  • Thumbwheels* for adjusting the temperature, arrows 1.
    Toward blue: colder.
    Toward red: warmer.
  • Lever for changing the air flow direction, arrow 2.
  • Thumbwheels for opening and closing the vents continuously, arrow 3.<>
