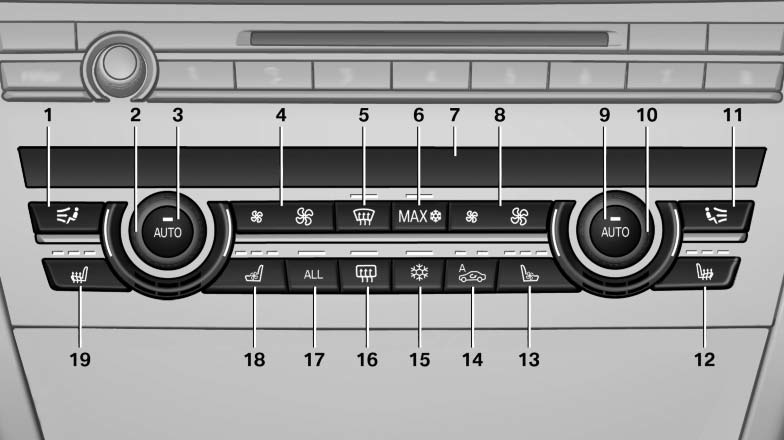

Automatic climate control
1 Air distribution, left
2 Temperature, left
3 AUTO program, left
4 Air volume, AUTO intensity, residual heat,
left
5 Remove ice and condensation
6 Maximum cooling
7 Display
8 Air volume, AUTO intensity, right
9 AUTO program, right
10 Temperature, right
11 Air distribution, right
12 Seat heating*, right
13 Active seat ventilation*, right
14 Automatic recirculated-air control/recirculated-
air mode
15 Cooling function
16 Rear window defroster
17 ALL program
18 Active seat ventilation*, left
19 Seat heating*, left
