Cameras

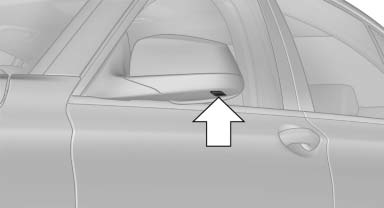

The objectives of the Top View cameras are located

The objectives of the Top View cameras are located at the bottom of the exterior mirror housings. The image quality may be impaired by dirt. Clean the lens.
