Engaging the transmission position

  • Transmission position P can only be disengaged if the engine is running and the brake pedal is pressed.
  • With the vehicle stationary, press on the brake pedal before shifting out of P or N; otherwise, the shift command will not be executed: shift lock.

To prevent the vehicle from creeping after Depress the brake until you start driving

To prevent the vehicle from creeping after you select a driving position, maintain pressure on the brake pedal until you are ready to start.

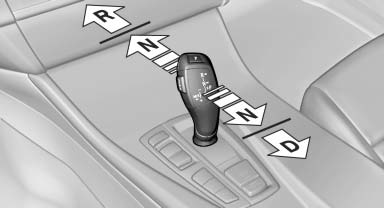

Engaging D, R and N

Briefly push the selector lever in the desired direction,

Briefly push the selector lever in the desired direction, beyond a resistance point if necessary.

After releasing the selector lever, it returns to its center position.

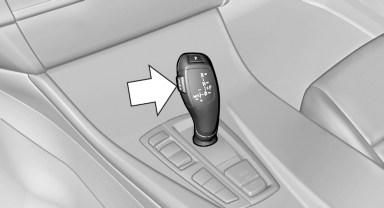

Press the Unlock button to:

Press the Unlock button to:

  • Engage R.
  • Shift out of P.

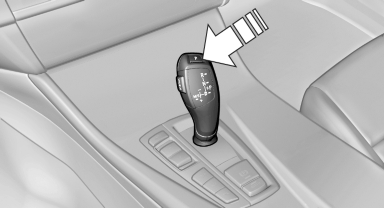

Engaging P

Press button P.

Press button P.
