Removing: manual head restraints
Only remove the head restraint if no one will be sitting in the seat in question.

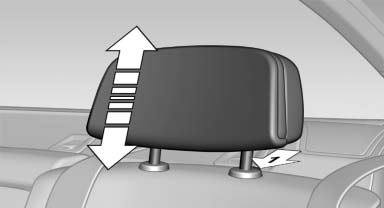

1. Pull the head restraint upward as far as possible.
2. Press the button, arrow 1, and pull the head restraint out completely.
Before transporting passengers
Reinstall the head restraint before transporting anyone in the seat; otherwise, the protective function of the head restraint is unavailable.
See also:
Control Display
Notes
► To clean the Control Display, follow the care
instructions.
► Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
...
Automatic climate control
Automatic climate control
1 Seat heating, left
2 Vent settings
3 Rear window defroster
4 Air flow
5 AUTO program
6 Temperature
7 Seat heating, right
8 Cooling function
9 Recirculated-air mo ...
Fuses
Never attempt to repair a blown fuse and do
not replace a defective fuse with a substitute of another color or amperage rating;
otherwise, this could lead to a circuit overload, ultimately result ...
