Rear seat heating

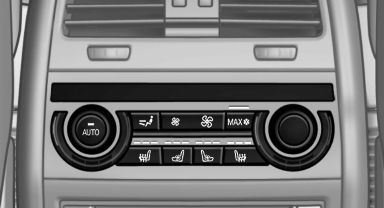

Switching on

Switching on

temperature Press the button once for each temperature level.

The maximum temperature is reached when three LEDs are lit.

Switching off

Press the button longer.

The LEDs go out.

Temperature distribution

The heating action in the seat cushion and backrest can be distributed in different ways.

1. "Climate"
2. "Seat heating rear"
3. Select the required seat.

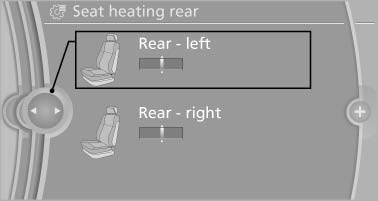

4. Turn the controller to set the temperature

4. Turn the controller to set the temperature distribution.
