Closing

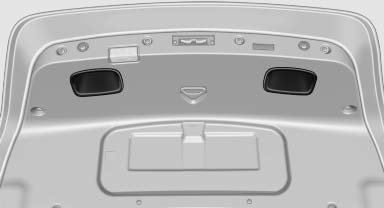

Recessed grips in the interior trim of the trunk

Recessed grips in the interior trim of the trunk lid make it easier to pull down the lid.

Make sure that the closing path of the Danger of pinching

Make sure that the closing path of the trunk lid is clear; otherwise, injuries may result.

cargo area Do not place the remote control in the cargo area

Take the remote control with you and do not leave it in the cargo area; otherwise, the remote control may be locked inside the vehicle when the trunk lid is closed.

Automatic Soft Closing

To close it completely, push the trunk lid down lightly.

It is closed automatically.

Locking the vehicle

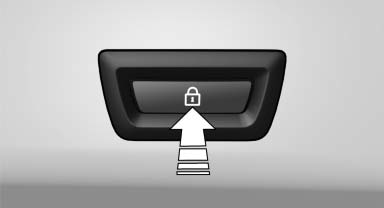

Press the button on the inside of the trunk lid.

Press the button on the inside of the trunk lid. The vehicle is locked completely.
