Opening the Options menu
Press the button.
The "Options" menu is displayed.
Additional options: move the controller to the right repeatedly until the "Options" menu is displayed.

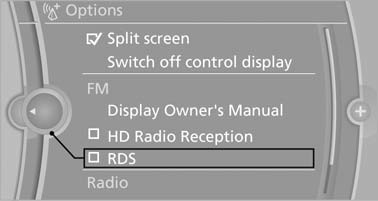

Options menu
The "Options" menu consists of various areas:
- Screen settings, e.g., "Split screen". This area remains unchanged.
- Control options for the selected main menu, e.g., for "Radio".
- If applicable, further operating options for the selected menu, e.g., "Store station".

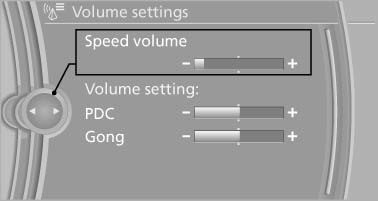

Changing settings
1. Select a field.
2. Turn the controller until the desired setting is displayed.
3. Press the controller.
See also:
Overview, instrument cluster with enhanced features
Overview, instrument cluster with enhanced features
1 Fuel gauge
2 Speedometer
3 Indicator/warning lamps
4 Tachometer
5 Engine oil temperature
6 Current fuel consumption
7 Electronic displa ...
Controls on the interior rearview mirror
Controls on the interior rearview mirror
▷ LED, arrow 1.
▷ Buttons, arrow 2.
▷ The hand-held transmitter, arrow 3, is required
for programming. ...
Fuel gauge
Fuel gauge
The vehicle inclination may cause the display to
vary.
Notes on refueling ...
