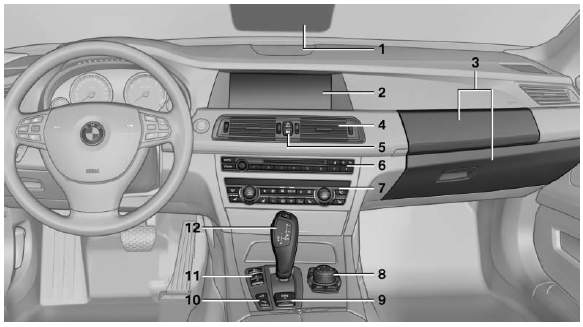

All around the center console
1 Headliner
2 Control Display
3 Glove compartment, top/bottom
4 Air vent
5
Hazard warning system
Central locking system
6 Radio
CD/Multimedia
7 Automatic climate control
8 Controller with buttons 19
9
Parking brake
Auto Hold
10
PDC Park Distance Control
Top View
Backup camera
Side View
HDC Hill Descent Control
11
Dynamic Driving Control
DSC Dynamic Stability Control
12 Transmission selector lever
