Dimensions
Width, height
1 Vehicle height: 66 inches/1,675 mm
2 Vehicle width without mirrors: 74 inches/1,881 mm
3 Vehicle width with mirrors: 82.6 inches/ 2,098 mm

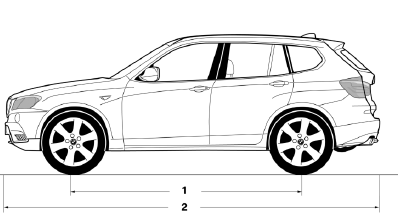

Length, wheel base
1 Wheel base: 110.6 inches/2,810 mm
2 Vehicle length: 182.9 inches/4,648 mm
Smallest turning circle
Dia.: 39 ft/11.9 m
