Fuses

Notes

Never attempt to repair a blown fuse and Replacing fuses
Never attempt to repair a blown fuse and do not replace a defective fuse with a substitute of another color or amperage rating; this could lead to a circuit overload, ultimately resulting in a fire in the vehicle.◄

Plastic tweezers and information on the fuse types and locations are stored in the fuse box in the cargo area.

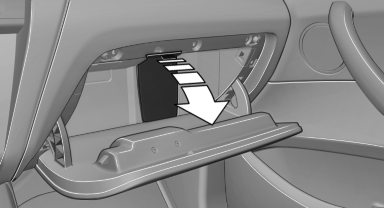

In the glove compartment

Swing the cover down, arrow.

Swing the cover down, arrow.

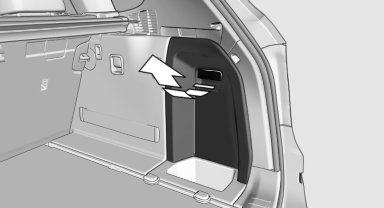

In the cargo area

Open the cover on the right side trim and remove

Open the cover on the right side trim and remove the sound insulation.

Information on the fuse types and locations is found on a separate sheet.
