Stowing cargo

► Very heavy cargo: when the rear seat is not
occupied, secure each of the outer safety
belts in the opposite buckle.
► Cover sharp edges and corners.
► Do not stack cargo above the top edge of the
backrests.

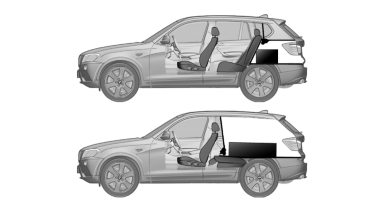

► Heavy cargo: stow as far forward and as low
as possible, ideally directly behind the rear
seat.
► If necessary, fold down the rear backrests to
stow cargo.
► Use the partition net, to
protect passengers. Make sure that objects
cannot penetrate the partition net.
► Place protective material around any sharpedged
or pointed objects that could bump
against the rear window while the vehicle is
in motion.
