Storage compartments in thecargo area

Storage space under the cargo floor cover

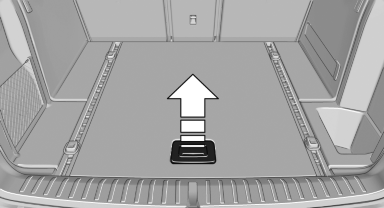

Raise the cargo floor panel. The storage space

Raise the cargo floor panel. The storage space under the cargo floor panel is subdivided.

Two additional subdividers can be inserted to partition it further.

Storage compartment on the right side

A waterproof storage compartment is available on the right side of the cargo area floor.

Hooks/multi-function hook

Multi-function hooks are available on the left and

Multi-function hooks are available on the left and right cargo area walls.

Retaining strap

A retaining strap is available on the right side trim for fastening small objects.

Smaller objects can be stored in the net on the left side of the cargo area.

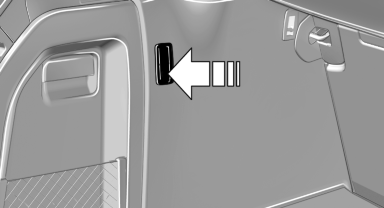

Left side storage compartment

To open: pull the handle.

Lashing eyes in the cargo area To secure the cargo, there are lashing eyes in the cargo area.

Lashing eyes in the cargo area with rail

To secure the cargo, there are lashing eyes in the cargo area.

Reversible floor panel

The bottom of the cargo floor panel is coated with a water- and dirt-resistant finish.

Fold the cargo floor panel up, remove it and flip it over.

Hook on the bottom of the cargo floor panel: for easier loading, the raised cargo floor panel can be secured on the edge of the roof with the hook.

Cargo net, FlexNet

To secure the cargo, the flexible cargo net can also be used.

Folding box

A folding box is located under the cargo area floor.
