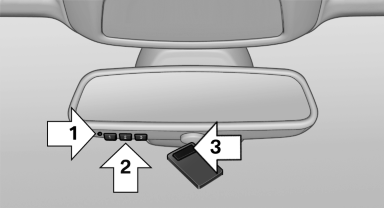

Controls on the interior rearview mirror
► LED, arrow 1.
► Buttons, arrow 2.
► The hand-held transmitter, arrow 3, is required
for programming.
See also:
Capturing the image
Two cameras integrated in the bumpers capture
the image.
The cameras capture a maximum range of
330 ft/100 m.
Display
The images from both cameras are shown simultaneously
on the Control Disp ...
Visual warning
The approach to an object can be shown on the
Control Display.
When the distance to an object is small, the PDC
display correspondingly shows a red bar in front
of the vehicle.
The display a ...
Capturing the image
The image is captured by two cameras
integrated in the exterior mirrors and by the
backup camera.
The range equals:
approx. 10 ft/3 m to the side.
approx. 7 ft/2 m to the rear.
In this w ...
