Turn signal, high beams,headlamp flasher
Turn signal

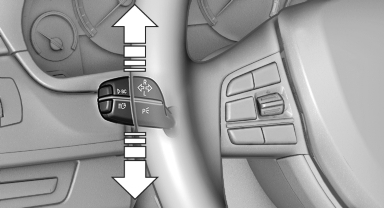

Using turn signals
Press the lever beyond the resistance point.
To switch off manually, press the lever to the resistance point.
Unusually rapid flashing of the indicator lamp indicates that a turn signal bulb has failed.
Triple turn signal activation
Press the lever to the resistance point.
The turn signal flashes three times.

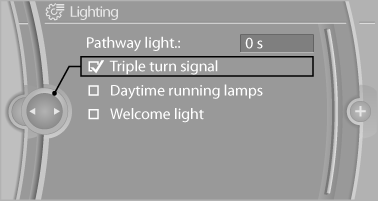

The function can be activated or deactivated:
1. "Settings"
2. "Lighting"
3. "Triple turn signal"
Signaling briefly
Press the lever to the resistance point and hold it there for as long as you want the turn signal to flash.

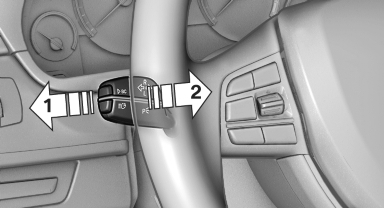

High beams, headlamp flasher
► High beams, arrow 1.
► Headlamp flasher, arrow 2.
