Installing child restraint fixingsystems
Before mounting
Before mounting child restraint fixing systems, ensure that the rear seat backrests are locked.
Notes
Manufacturer's information for child restraint
fixing systems
To select, mount and use child restraint fixing
systems, observe the information provided by
the system manufacturer; otherwise, the protective
effect can be impaired.◄
On the front passenger seat
Deactivating airbags
After installing a child restraint fixing system in the front passenger seat, make sure that the front, knee and side airbags on the front passenger side are deactivated.
Deactivate the front passenger airbags automatically, refer to page 92.
Deactivating the front passenger airbags
If a child restraint fixing system is used in
the front passenger seat, the front passenger
airbags must be deactivated; otherwise, there is an increased risk of injury to
the child when the
airbags are triggered, even with a child restraint
fixing system.◄
Seat position and height
Before installing a child restraint fixing system, move the front passenger seat as far back as possible and adjust its height to the highest position to obtain the best possible position for the belt and to offer optimal protection in the event of an accident.
Do not change the seat position and height after this.
Backrest width
Adjustable backrest width: before installing a child restraint fixing system in the front passenger seat, open the backrest width completely.
Do not change the backrest width again and do not call up a memory position.
Backrest width for the child seat
Before installing a child restraint fixing
system in the front passenger seat, the backrest
width must be opened completely. Do not
change the adjustment after this; otherwise, the
stability of the child seat will be reduced.◄

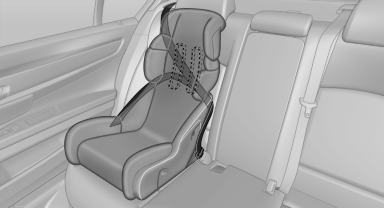

Child seat security
The rear safety belts and the front passenger safety belt can be locked against pulling out for mounting the child restraint fixing systems.
Locking the safety belt
1. Pull out the belt webbing completely.
2. Secure the child restraint fixing system with
the belt.
3. Allow the belt webbing to be pulled in and
pull it taut against the child restraint fixing
system. The safety belt is locked.
Unlocking the safety belt
1. Unbuckle the belt buckle.
2. Remove the child restraint fixing system.
3. Allow the belt webbing to be pulled in completely.
