Electrically adjustable seats

BMW X3 / BMW X3 iDrive Owners Manual / Controls / Adjusting / Seats / Electrically adjustable seats

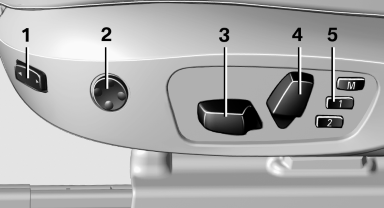

At a glance

1 Backrest width

1 Backrest width
2 Lumbar support
3 Forward/backward, height, seat tilt
4 Backrest tilt
5 Seat and mirror memory for driver's seat

Note

The seat setting for the driver's seat is stored for the remote control currently in use. When the vehicle is unlocked via the remote control, the position is automatically retrieved if the function, refer to page 35, is activated for this purpose.

Adjustments in detail

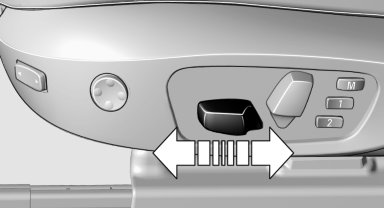

1. Forward/back

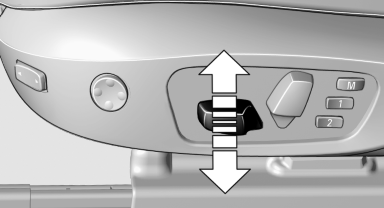

2. Height.

2. Height.

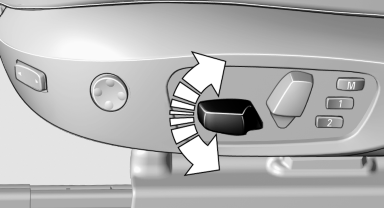

3. Seat tilt.

3. Seat tilt.

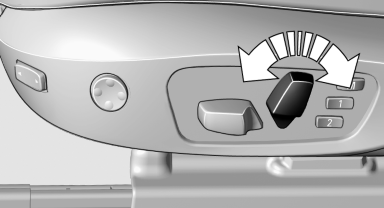

4. Backrest tilt.

4. Backrest tilt.

Thigh support
