Tow fitting

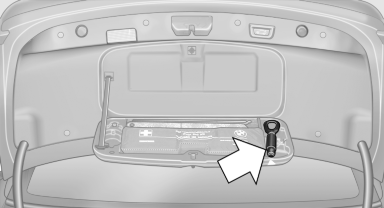

The screw-in tow fitting should always be carried in the vehicle. It can be screwed in at the front or rear of the BMW. It is located in the container on the inside of the trunk lid.
Tow fitting, information on use
▷ Use only the tow fitting provided with
the vehicle and screw it all the way in.
▷ Use the tow fitting for towing on paved roads
only.
▷ Avoid lateral loading of the tow fitting, e.g.,
do not lift the vehicle by the tow fitting.
Otherwise, damage to the tow fitting and the vehicle can occur.◀
See also:
Symbols used
Indicates precautions that must be followed
precisely in order to avoid the possibility of personal injury and serious damage
to the vehicle.
Indicates information that will assist you in
gai ...
Tire identification marks
Tire size
255/50 R 19 103 Y
255: nominal width in mm
50: aspect ratio in %
R: radial tire code
19: rim diameter in inches
103: load rating, not for ZR tires
Y: speed rating, before the R on ZR ...
Securing cargo
Securing cargo
After loading, secure the ski bag and its contents.
Tighten the retaining strap on the tensioning
buckle for this purpose.
Securing the ski bag
Secure the ski bag in this way. ...
