Socket for OBD Onboard Diagnosis

BMW 5 Series / BMW 5 Series Owners Manual / Mobility / Maintenance / Socket for OBD Onboard Diagnosis

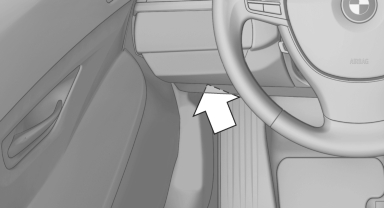

There is an OBD socket on the driver's side for

There is an OBD socket on the driver's side for checking the primary components in the vehicle emissions.

Emissions

Emissions are deteriorating. Have ▷ The warning lamp lights up:

Emissions are deteriorating. Have the vehicle checked as soon as possible.

indicates Canadian model: warning light indicates the engine symbol.

▷ The warning lamp flashes under certain circumstances:

This indicates that there is excessive misfiring in the engine.

Reduce the vehicle speed and have the system checked immediately; otherwise, serious engine misfiring within a brief period can seriously damage emission control components, in particular the catalytic converter.

Fuel cap

If the fuel cap is not properly tightened, The indicator lamp lights up.

If the fuel cap is not properly tightened, the OBD system may conclude that fuel vapor is escaping. If the cap is then tightened, the display should go out in a short time.
