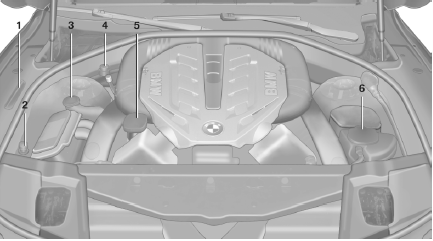

Important features in the engine compartment
Important features in the engine compartment
1. Vehicle identification number
2. Jump-starting, negative terminal
3. Washer fluid reservoir
4. Jump-starting, positive terminal
5. Oil filler neck.
6. Coolant reservoir
