Remote control

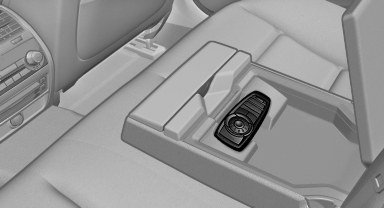

In the center armrest in the rear

Storage is possible in a horizontal position in the

Storage is possible in a horizontal position in the center armrest.

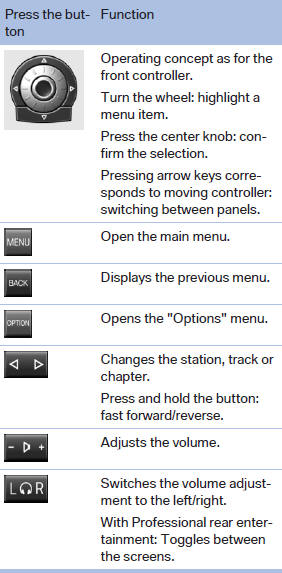

Menu navigation

The transmission time of the remote control is

The transmission time of the remote control is limited by law. To execute a function again, press or turn the required button again.

Replacing the batteries

Do not use rechargeable batteries, as No rechargeable batteries
Do not use rechargeable batteries, as damage may result from the substances in the batteries.◀

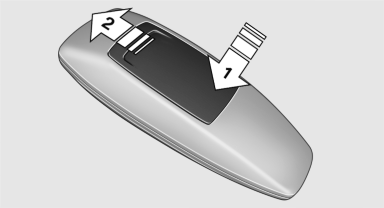

1. Remove the cover. Press on the cover, arrow

1. Remove the cover. Press on the cover, arrow
1, and push forward, arrow 2.
2. Insert batteries of the same type.
3. Close the cover.

centerTake the used battery to a recycling center or to your service center.
