Programming

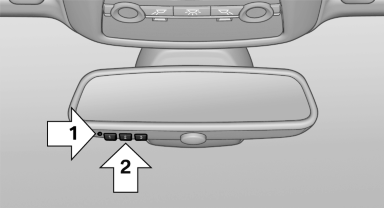

▷ LED, arrow 1.
▷ Memory buttons, arrow 2.
Fixed-code hand-held transmitters
1. Switch on the ignition.
2. Initial setup:
Press the two outer memory buttons 1 and
3 for approx. 20 seconds until the LED, arrow
1 flashes.
All programs of the three memory buttons,
arrow 2, are cleared.
3. Hold the hand-held transmitter a distance of
approx. 1 to 3 in/2.5 to 8 cm from the memory
buttons.
The required distance depends on the
manual transmitter.
4. Simultaneously press the transmit button of
the hand-held transmitter and the memory
button of the integrated universal remote
control.
The LED flashes slowly.
5. Release both buttons when the LED flashes
rapidly.
If the LED does not flash rapidly after approx.
60 seconds, change the distance and repeat
the step.
Canada: if the LED is not flashing rapidly after
approx. 60 seconds, change the distance
and repeat the step, or, if the programming
was interrupted by the hand-held transmitter,
hold down the memory button and press
and release the button on the hand-held
transmitter again for 2 seconds.
6. To program other hand-held transmitters,
repeat steps 3 to 5.
The device can be operated using the memory
button with the engine running or the ignition
switched on.
Malfunction
If the device cannot be used after repeated attempts at programming, please check whether the hand-held transmitter is equipped with an alternating code system.
To do so:
▷ Read the instructions of the hand-held
transmitter.
▷ Hold down the memory button of the
integrated universal remote control longer.
If the LED of the integrated universal remote control flashes rapidly for a brief period and then lights up continuously, the hand-held transmitter is equipped with an alternating code system.
In this case, program the memory buttons as described under Alternating-code hand-held transmitters.
Alternating-code hand-held transmitters
Please obtain information on synchronizing the device in the operating manual of the device being set up.
Programming will be easier with the aid of a second person.
1. Park the vehicle within range of the remotecontrolled
device.
2. Program the integrated universal remote
control as described above under Fixedcode
hand-held transmitters.
3. Locate the button on the receiver of the device
to be set, e.g., on the drive.
4. Press the button on the receiver of the device
to be set. You have approx. 30 seconds
for the next step.
5. Hold down the programmed memory button
of the integrated universal remote for approx.
3 seconds. Repeat this work step, if necessary, up to three times.
The device can be operated using the memory button with the engine running or the ignition switched on.
