Pedestrian detection

The pedestrian detection and warning system

The pedestrian detection and warning system only operates in darkness and only when a heat image is displayed.

Warm objects that are similar in shape to human beings are detected by the system.

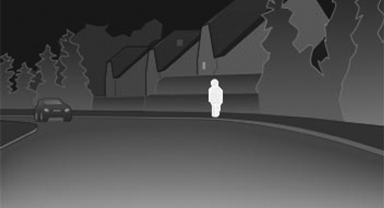

People detected by the system are displayed with a slight yellow hue.

Under good ambient conditions, the pedestrian detection system operates within a range of approx.

50 ft/15 m to approx. 330 ft/100 m.

Environmental influences can limit the availability

Environmental influences can limit the availability of pedestrian detection.

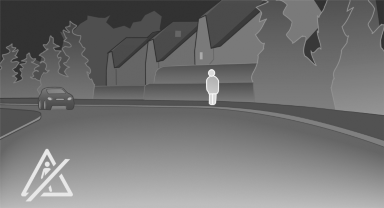

If pedestrian detection is not available, a symbol is displayed in the heat image.

This symbol disappears when the function becomes available again.
