Cameras

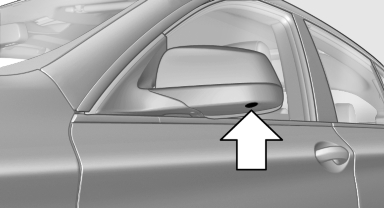

The objectives of the Top View cameras are located at the bottom of the exterior mirror housings.
The image quality may be impaired by dirt.
Clean the lens
