Radar sensors

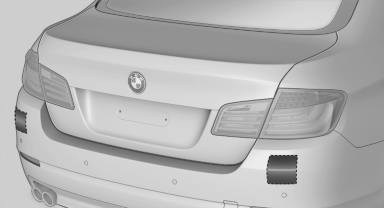

The radar sensors are located under the rear

The radar sensors are located under the rear bumper.

The system may not be fully functional in the following situations:

▷ Dirty or icy bumper.
▷ Stickers on the bumper.

A Check Control message is displayed when the system is not fully functional.
