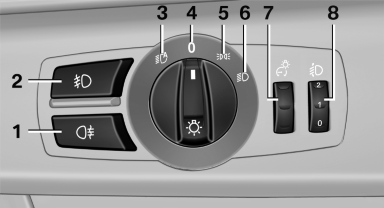

At a glance
1. Rear fog lamps
2. Front fog lamps
3. Automatic headlamp control, Adaptive Light
Control , High-beam Assistant, Welcome
lamps, daytime running lights
4. Lamps off, daytime running lights
5. Parking lamps, daytime running lights
6. Low beams, welcome lamps, High-beam
Assistant
7. Instrument lighting
8. Headlamp range control
