Switching the wipers on/off and brief wipe
Do not switch on the wipers if frozen
Do not switch on the wipers if they are frozen
onto the windshield; otherwise, the wiper
blades and the windshield wiper motor may be
damaged.◀
Switching on

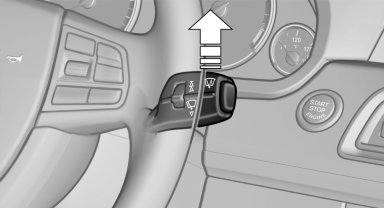

Press the wiper levers up.
The lever automatically returns to its initial position when released.
▷ Normal wiping speed: press up once.
The wipers switch to intermittent operation
when the vehicle is stationary.
▷ Fast wiping speed: press up twice or press
once beyond the resistance point.
The wipers switch to normal speed when the vehicle is stationary.
Switching off and brief wipe
Switching off and brief wipe

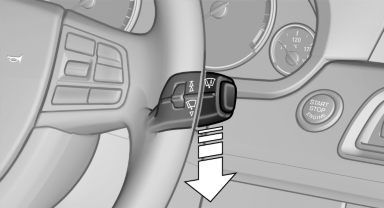

Press the wiper levers down.
The lever automatically returns to its initial position when released.
▷ Brief wipe: press down once.
▷ To switch off normal wipe: press down once.
▷ To switch off fast wipe: press down twice.
