Opening
1. Unlock the belt lock of the center safety belt in the rear using the latch plate of another safety belt.
2. Insert the latch plate at the end of the belt into the specially designated fixture on the rear window shelf.

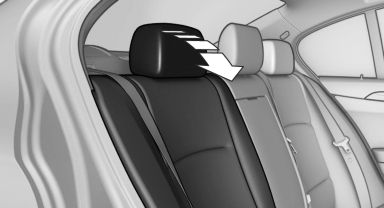

3. Push the corresponding head restraint down as far as it will go.
4. Pull the corresponding lever in the cargo area to release the rear seat backrest.
5. The unlocked rear seat backrest moves forward slightly. Fold the backrest forward by the head restraint.
See also:
System limits
Personal judgment
The system cannot serve as a substitute
for the driver's personal judgment of the traffic
situation.
The system assists the driver and does not replace
the human eye.
The s ...
Removing and inserting
Cargo cover without partition net:
Removing
The cover can be removed to load bulky luggage.
Reach under the cover and turn it upward, arrows.
Pull the cover back horizontally.
Cargo cover ...
Wiper blades
1. Fold out the wiper arm and hold it.
2. Press together the locking spring, arrows 1, and fold out the wiper
blade, arrow 2.
3. Take the wiper blade out of the catch mechanism ...
