Display on the Control Display
Activating/deactivating systems

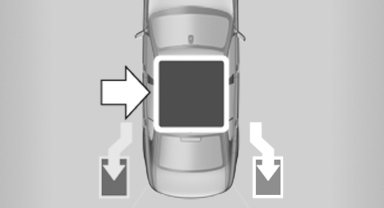

System status
Gray: the system is not activated.
Parking space search.
Blue: the system is activated. A suitable parking space was found.
The parking procedure is active.
Steering control has been seized.

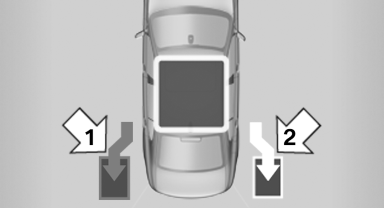

Status of the parking space search
Status of the parking space search
▷ Gray, arrow 1: parking space search.
▷ Blue, arrow 2: parking space is suitable.
The vehicle is parked in the parking space if the parking procedure is active.
▷ No display: no parking space search.
