Switching on

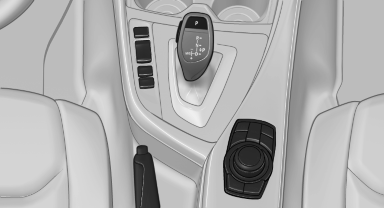

Using the button

Using the button
Press the button.
The LED lights up.
The current status of the parking space search is indicated on the Control Display.
Parking assistant is activated
automatically.
By engaging reverse
The current status of the parking space search is indicated on the Control Display.
Activate:
"Parking Assistant"
Select the
symbol in the Control Display.
