Displays
Program selection
Pressing the button displays a list of the selectable programs.
Selected program
The selected program is displayed in the instrument cluster.

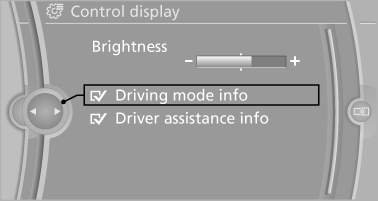

Display on the Control Display
Program changes can be displayed on the Control Display.
1. "Settings"
2. "Control display"
3. "Driving mode info"
See also:
Top View
The concept
Top View assists you in parking and maneuvering.
The area around the doors and the road area
around the vehicle are shown on the Control
Display for this purpose. ...
Traffic bulletins on the map
"Traffic conditions/gray map" active:
The Control Display changes to a black and
white display. This enables a better view of the
traffic bulletins. The day/night mode is disregarded
...
Status field
The following information is displayed in the status
field at the top right:
► Time.
► Current entertainment source.
► Sound output, on/off.
► Wireless network reception ...
