Camera
Camera

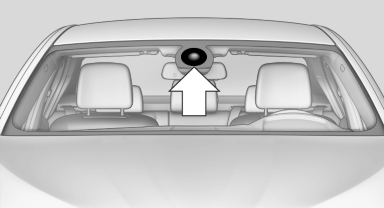

The camera is located near the base of the mirror.
Keep windshield clean and clear in the area in front of the interior rear view mirror.
