Switching the high beams on and off manually

Switching the high beams on and off manually
Switching the high beams on and off manually

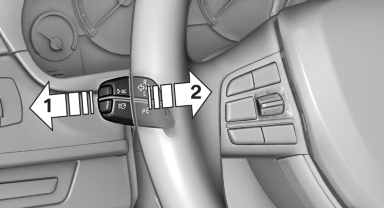

▷ High beams on, arrow 1.

▷ High beams off/headlamp flasher, arrow 2.

The High-beam Assistant can be switched off when manually adjusting the light. To reactivate the High-beam Assistant, press the button on the turn signal lever.
