Mounts for the lower LATCH anchors

Correctly engage the lower LATCH anchors Correctly engage the lower LATCH anchors

Make sure that the lower LATCH anchors have properly engaged and that the child restraint fixing system is resting snugly against the backrest; otherwise, the degree of protection offered may be reduced.

Before mounting the LATCH child restraint fixing system, pull the belt away from the child restraint fixing system.

Without a through-loading system:

Position

Without a through-loading system: Position
Without a through-loading system: Position

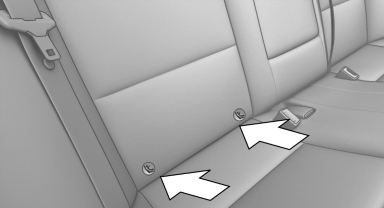

Mounts for the lower LATCH anchors are located in the gap between the seat and backrest.

With a through-loading system:

Position

With a through-loading system: Position
With a through-loading system: Position

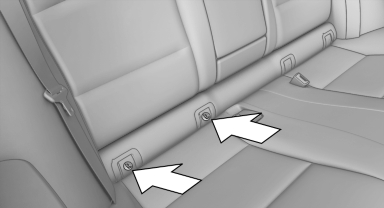

Mounts for the lower LATCH anchors are located behind the indicated covers.
