Interior rearview mirror, automatic dimming feature

The concept

The concept
The concept

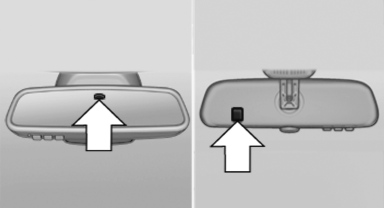

Photocells are used for control:

▷ In the mirror glass.

▷ On the back of the mirror.

Functional requirement

For proper operation:

▷ Keep the photocells clean.

▷ Do not cover the area between the inside rearview mirror and the windshield.
